Fuel Cell Half Equations

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Energy changes Chemical cells and fuel cells

Fuel Cell Half Equations

2:44 Reactions at Electrodes in Hydrogen Fuel Cells
Spec 4.5.2.2
Previous Fuel Cells Next Relative Formula Mass
  • Hydrogen and oxygen react in a hydrogen fuel cell to form water as the only product.
  • Hydrogen gas is pumped in one end, and oxygen gas is pumped in the other.
  • The reaction generates a potential difference and produces water, which is pumped out.
  • Leftover hydrogen is pumped out and can be recycled back into the cell.
  • The chemical equation for the reaction is 2H2 (gas) + O2 (gas) ��� 2H2O (liquid).

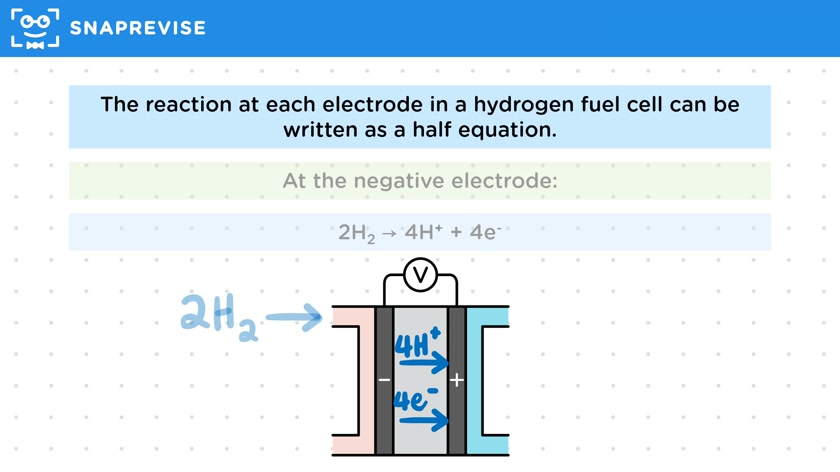

  • The reaction at each electrode can be written as a half equation.
  • At the negative electrode: 2H2 ��� 4H+ + 4e-.
  • At the positive electrode: O2 + 4H+ + 4e- ��� 2H2O.
  • The two half equations can be combined into one large equation.
  • The overall equation for the reaction is 2H2 + O2 ��� 2H2O.
  • This equation is the same as for the combustion of hydrogen, but achieved through different means.
