Alternator

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Magnetism and electromagnetism Induced potential, transformers and the National Grid

Alternator

9:32 Applying the Generator Effect
Spec 4.7.3.2
Previous Calculating the Force on a Wire Next Potential Difference from an Alternator
  • An alternator is an electrical generator that produces alternating current.
  • It consists of two opposing magnetic poles creating a magnetic field.
  • A rectangular conducting coil is used, with sides parallel and perpendicular to the field.
  • Unlike an electric motor, the coil in an alternator is rotated by an external force.
  • The rotation induces an electric current, converting kinetic energy to electrical energy.
  • Alternators are connected to circuits for the induced current to travel.
  • Slip ring connectors allow the coil to spin without breaking the circuit connection.
  • Slip ring communicators connect each end of the coil to a circuit end.
  • The coil's rotation induces a potential difference due to the generator effect.
  • The coil's sides perpendicular to the field lines induce potential differences.

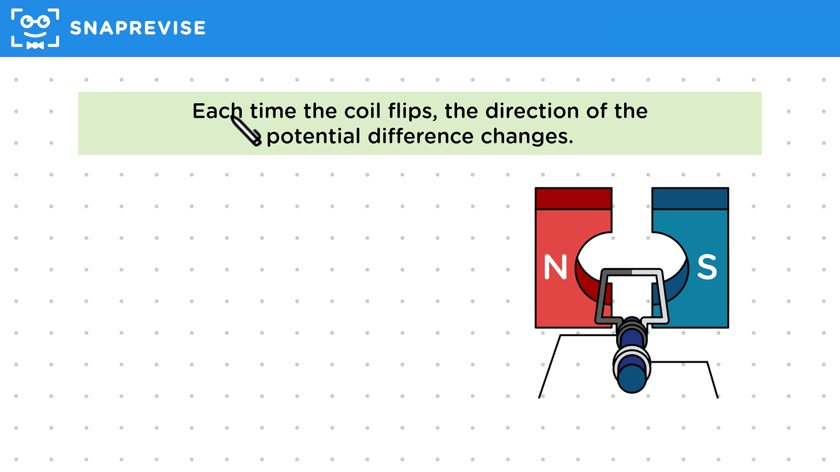

  • The direction of potential difference changes with each half rotation of the coil.
  • The slip ring connector causes the current direction in the circuit to change.
  • Alternators induce alternating current, which periodically changes direction.
  • Alternators are used in energy resources to generate electricity for the national grid.
  • Examples include wind farms, water wheels, dams, tidal energy plants, fossil fuel, and geothermal plants.
  • These resources use kinetic energy to spin turbines connected to alternators.
