Ohmic Conductors

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Electricity Current, potential difference and resistance

Ohmic Conductors

4:25 Resistance of Circuit Components
Spec 4.2.1.4
Previous Measuring Resistance Next Filament Lamps
  • An Omic conductor has constant resistance at constant temperature.
  • Resistance of a conductor increases with temperature.
  • Fixed resistors are designed to have constant resistance.
  • Wires are Omic conductors with small resistance, unchanged if not heated.
  • Omic properties can be lost at extreme temperatures, not needed for GCSE.

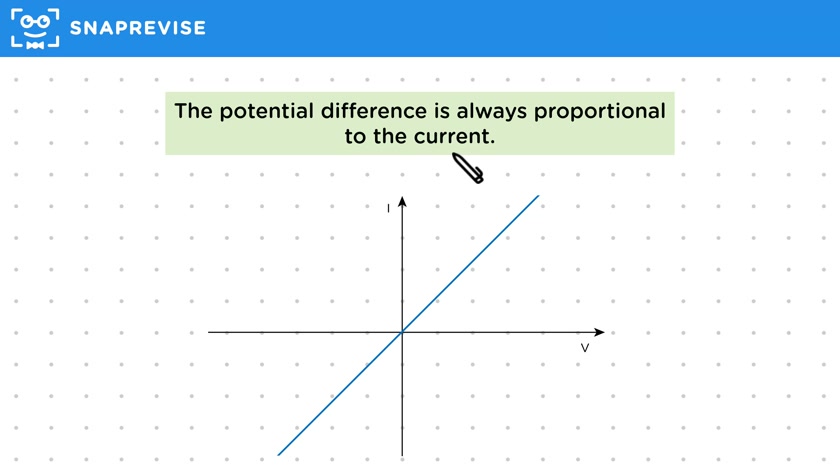

  • IV graph for Omic conductor is a straight line through the origin.
  • IV graphs show the relation between current and potential difference.
  • Potential difference is proportional to current for Omic conductors.
  • V = K, where K is a constant value, represents the relation.
  • V/I = K, where K is the resistance of the component.
  • R is constant for Omic conductors with a straight line IV graph.
  • Steeper gradient of the graph indicates smaller resistance.
  • Gradient is calculated by I/V, equal to 1/R.
  • Higher resistance means smaller gradient.
  • Steeper graph indicates smaller resistance, shallower graph indicates larger resistance.
