Electromagnetic Flow Meter

4:41 Applying the Generator Effect
Spec 4.7.3.1
Previous Microphones Next Induced Potential Difference
  • An electromagnetic flow meter measures the rate of flow of a fluid (liquid or gas) passing through it.
  • It allows fluids to flow through without much disruption and measures their speed using magnets and electricity.
  • The device operates based on the generator effect, which is important for exams.

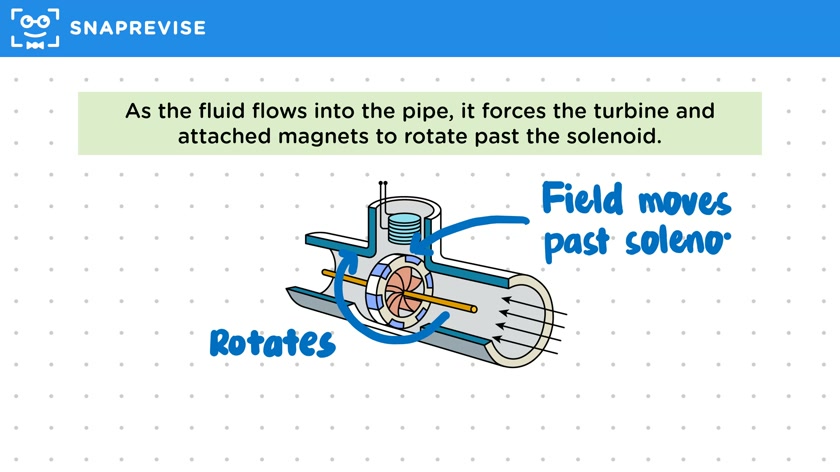

  • A flow meter consists of a turbine in an open-ended pipe with magnets of alternating polarity on the turbine wheel's rim.
  • The turbine spins as fluid passes through, similar to turbines in dams, with alternating magnets embedded around its edge.
  • A solenoid, a coil of wire, is placed near the magnets but not in contact with them or the fluid.
  • As fluid flows, it rotates the turbine and magnets past the solenoid, creating a potential difference due to the generator effect.
  • The potential difference is induced as magnetic field lines cut across the solenoid.
  • The generated potential difference helps calculate the fluid's flow rate.
  • The speed of the fluid affects the size of the potential difference; faster flow results in a larger potential difference.
  • Engineers measure the potential difference to calculate the flow rate of the fluid.
  • Understanding how the flow meter works and analyzing patterns in measurements is important for exams.
  • Electromagnetic flow meters are used in analyzing fluid systems, such as in rivers, oil pipes, sewage pipes, and air tunnels.
  • They help determine flow rates, detect blockages, and analyze how quickly substances are carried.
