Fleming's Left-Hand Rule

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Magnetism and electromagnetism The motor effect

Fleming's Left-Hand Rule

6:13 The Motor Effect
Spec 4.7.2.2
Previous Magnetic Flux Density Next Coil in a Magnetic Field
  • Fleming's left hand rule relates a current-carrying conductor, the magnetic field it's in, and the force produced between them.
  • Current-carrying wires generate a magnetic field and experience a force in another field, known as the motor effect.
  • Fleming's left hand rule helps determine the directions of current, magnetic field, and force.
  • Assign each to a finger: second finger for current (C for current), first finger for magnetic field (F for field), and thumb for force (M for motion).
  • Fingers must be at right angles to each other for the motor effect to be strongest, as current and field are perpendicular.
  • Use the left hand rule to determine the direction of force, field, or current based on a diagram.

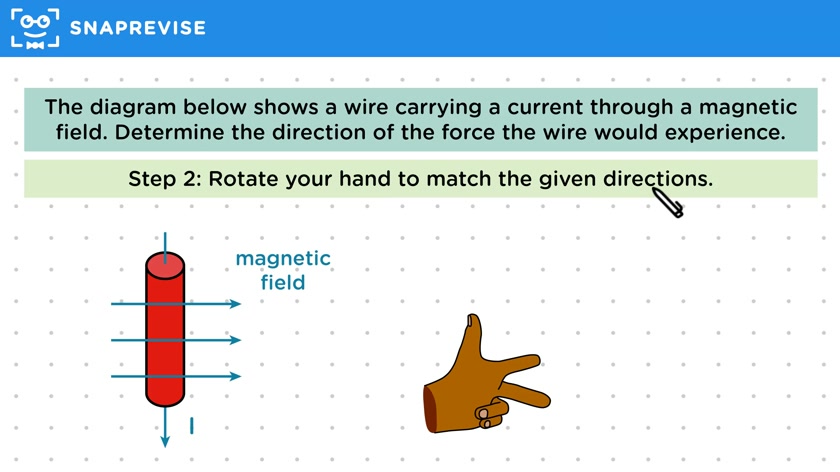

  • Example: A wire with current flowing downward and a perpendicular field pointing right results in a force pointing out of the page.
  • Reversing the current in a wire reverses the direction of the magnetic force.
  • Reversing the magnetic field direction also reverses the magnetic force direction.
  • Dot notation represents a field directed out of the page; cross notation represents a field directed into the page.
