Induced Potential Difference

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Magnetism and electromagnetism Induced potential, transformers and the National Grid

Induced Potential Difference

4:07 The Generator Effect
Spec 4.7.3.1
Previous Electromagnetic Flow Meter Next The Generator Effect
  • A potential difference is induced when a conductor moves through a magnetic field.
  • Induced means created by something.
  • Demonstrated by waving a conductor between two magnetic poles.
  • Magnetic materials experience a force in the magnetic field region.
  • Moving a conductor through the field lines induces a potential difference between its ends.
  • Potential difference (pd) allows current flow if part of a circuit.
  • Induced potential difference lasts only while the conductor is moving.
  • Continuous movement of the conductor results in a constantly alternating potential difference.

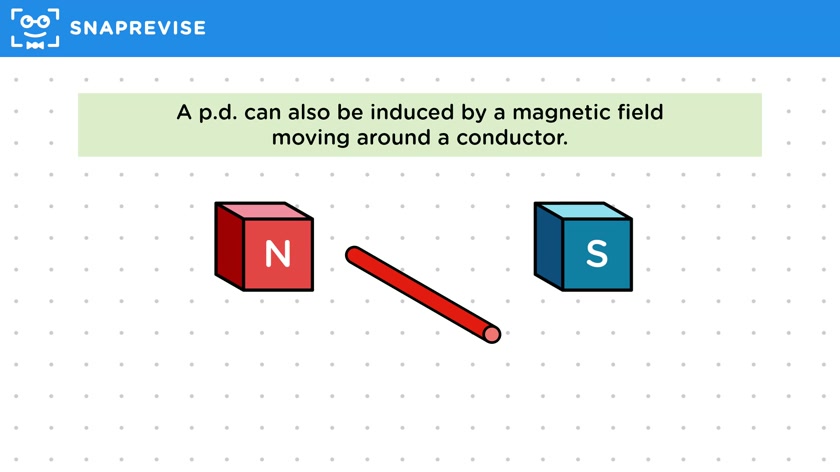

  • A potential difference can also be induced by moving a magnetic field around a conductor.
  • Relative motion between the conductor and field is necessary for inducing potential difference.
  • No induced potential difference when a conductor moves parallel to the field lines.
  • A change in the magnetic field can induce a potential difference without motion.
  • Switching magnetic poles or changing flux density can induce potential difference.
