Light-Dependent Resistors

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Electricity Current, potential difference and resistance

Light-Dependent Resistors

3:37 Resistance of Circuit Components
Spec 4.2.1.1 4.2.1.4
Previous Thermistors Next Components in Parallel
  • A light dependent resistor (LDR) changes its resistance based on light intensity.
  • The wavy conductor on top acts as a sensor reacting to light.
  • Resistance changes due to the release of more charge carriers.
  • The circuit symbol for an LDR is a rectangle in a circle with two arrows indicating light reaction.
  • LDR is abbreviated from light dependent resistor.

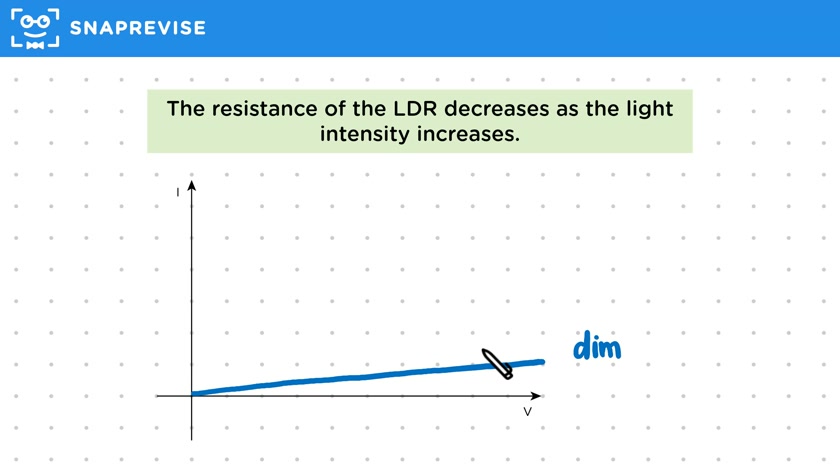

  • LDR resistance decreases as light intensity increases.
  • On an IV graph, potential difference is on the horizontal axis and current on the vertical axis.
  • In dim conditions, the LDR shows a straight line through the origin, indicating constant resistance.
  • In bright conditions, the graph is steeper, indicating lower resistance.
  • The gradient of an IV graph indicates the resistance of the component.
  • LDRs are used in circuits that need to react to light intensity changes, such as security lights and smartphone screens.
  • LDRs help measure brightness and adjust resistance and current accordingly.
  • For exams, understanding the usefulness of LDRs in devices is important, though recalling specific examples is not necessary.
