Resistance in Series

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Electricity Series and parallel circuits

Resistance in Series

10:18 Series Circuits
Spec 4.2.2
Previous Current & Potential Difference in Series Next Cells in Series
  • Increasing the number of resistors in a series circuit increases the total resistance.
  • Charge carriers must pass through all resistors in series, losing energy with each resistor they pass through.
  • Example provided comparing two circuits with the same type of resistor but different quantities, demonstrating higher resistance with more resistors.
  • Total resistance in a series circuit is calculated by summing the resistances of all components.
  • Example calculation: A series circuit with two resistors, R1 and R2, has a total resistance of R1 + R2.
  • Higher total resistance in a circuit leads to a decrease in current, as current is inversely proportional to resistance.

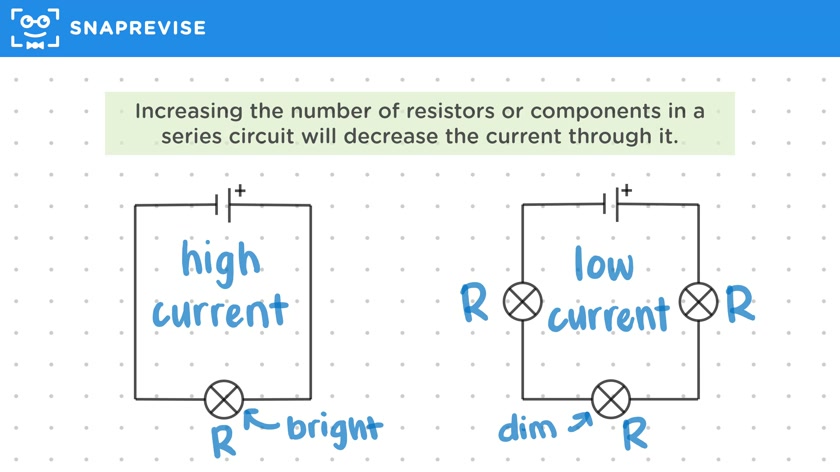

  • Example provided comparing current flow in circuits with different numbers of lamps, showing lower current with higher resistance.
  • Potential difference in a series circuit is split among components based on their resistances.
  • Example calculation: In a circuit with a 24-volt cell, a 1-ohm lamp, and a 5-ohm resistor, the potential difference is divided into 4 volts across the lamp and 20 volts across the resistor.
  • Detailed example provided calculating total resistance in a circuit with two lamps, using series circuit rules and equations to find unknown values.
  • Final resistance calculation example: Adding the resistances of two lamps in series to find the total resistance of the circuit.
