Stopping Distance Calculations

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Forces Forces and motion

Stopping Distance Calculations

4:40 Stopping Distance
Spec 4.5.6.3.1
Previous Speed from Distance-Time Graphs Next Stopping Distance Values
  • Stopping distance is the sum of thinking and braking distances.
  • Thinking distance is the distance traveled between the appearance of danger and the application of brakes.
  • Braking distance is the distance the car travels while decelerating after brakes are applied.
  • Stopping distance = Thinking distance + Braking distance.

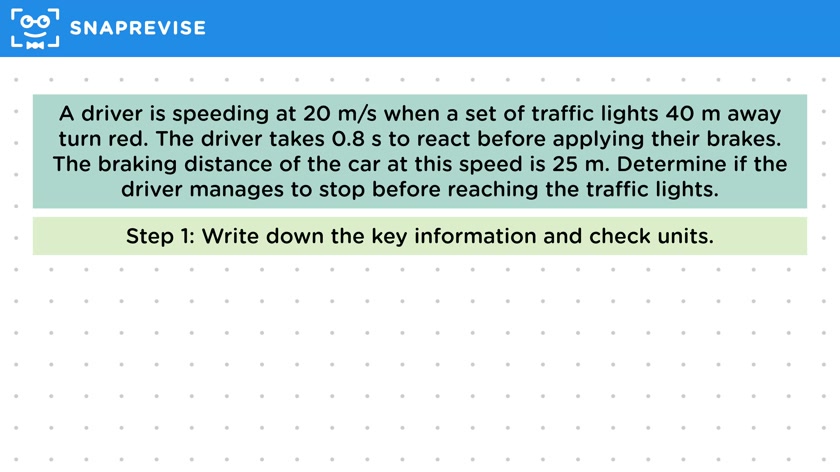

  • Example problem: A driver at 20 m/s sees traffic lights 40 meters away turn red, reacts in 0.8 seconds, and has a braking distance of 25 meters.
  • Calculate thinking distance using speed and reaction time: 20 m/s * 0.8 s = 16 meters.
  • Total stopping distance = 16 meters (thinking) + 25 meters (braking) = 41 meters.
  • Compare stopping distance to the distance to the lights (40 meters).
  • Conclusion: The car stops after the lights, as 41 meters > 40 meters.
