Front & Side Elevations

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Geometry and Measures Properties and Constructions

Front & Side Elevations

3:45 Plans & Elevations
Spec G13
Previous Twin Angles at Circumference Next Opposite Angles in a Quadrilateral
  • A front elevation is a view from the front of an object
  • A side elevation is a view from the side of an object
  • The names of the views (front and side) are arbitrary as long as they are different from each other
  • An arrow is used to show the direction from which the shape is being viewed
  • The shape is labeled to indicate which view is the front and which view is the side
  • The visible parts of the shape in the front view are determined by the arrow
  • Unknown lengths of the shape can be calculated by splitting it into different sections
  • The front elevation can be drawn to scale on a grid, with each square representing one centimeter
  • The height and width of the shape are measured in centimeters and represented on the grid

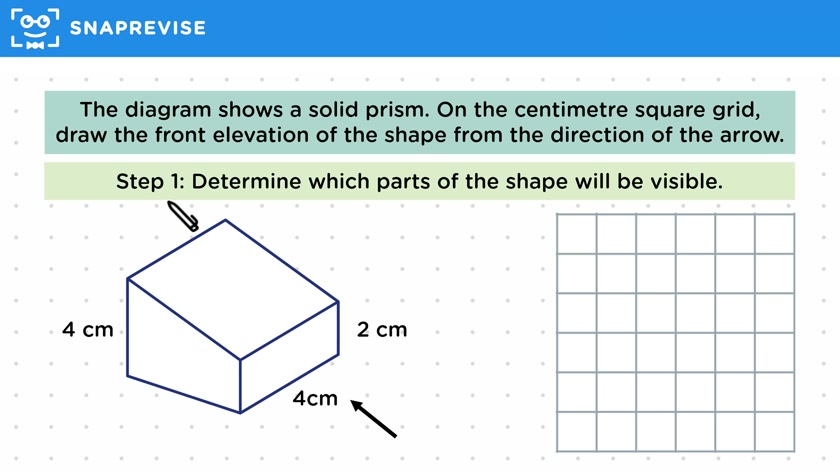

  • The front and side elevations of a 3D shape can be determined given an image and a viewing direction.
