GCSE Maths (AQA)

435 videos | 33 hours

Cumulative Frequency Graphs

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Statistics Statistics

Cumulative Frequency Graphs

4:54 Grouped Data & Cummulative Frequency
Spec S3 S4
Previous Cumulative Frequency Next Even Histograms
  • Cumulative frequency graph plots upper bounds in a set of group data against their cumulative frequencies
  • Cumulative frequency is a running count of the frequencies up to and including a given group
  • X coordinates of the points on the graph are given by the upper bound of the group
  • Y coordinates of the points are given by the cumulative frequency of that group
  • The graph starts at the x axis with a point at the lower bound of the first group (usually zero)
  • The final point on the graph has coordinates equal to the final cumulative frequency and the upper bound of the final group
  • Plots can be joined with straight lines or a single smooth curve
  • Straight lines are easier to join, but a curve is more likely to represent the actual distribution of frequencies within the groups
  • Suitable scale for each axis must be chosen
  • The scale on the y axis must start at zero and go to at least the largest cumulative frequency

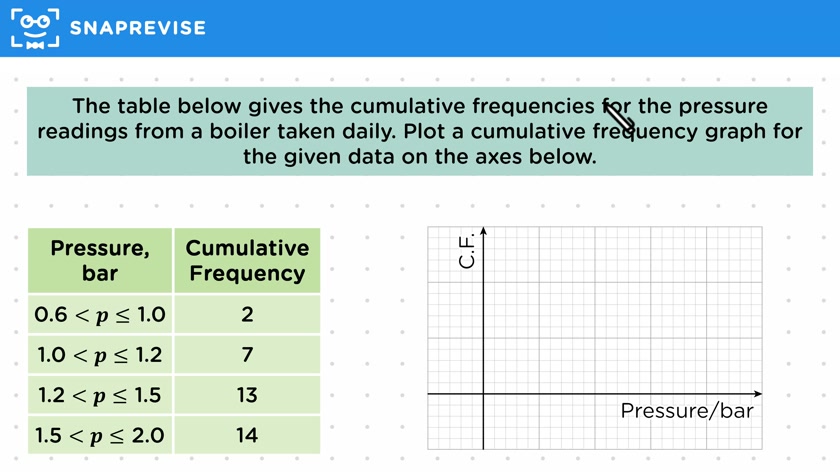

  • Example given of plotting a cumulative frequency graph for pressure readings from a boiler
  • Steps provided for plotting the graph: choose scale, plot starting point, plot cumulative frequencies for each group, join plotted points together
