Using Scale Diagrams

Please subscribe to watch this video.

This, and all other videos, are included in our premium subscriptions.

Premium accounts get access to all videos.

Geometry and Measures Mensuration and Calculation

Using Scale Diagrams

3:16 Scale Diagrams & Bearings
Spec R2 R12 G15
Previous Scale Diagrams Next Bearings
  • To convert from a scale diagram to real life, measure a line on the diagram and multiply it by the scale factor
  • Scale factor of 1 to 100 means every distance on the plan represents a distance a hundred times as large in the actual building
  • One centimeter on the plan represents a hundred centimeters or one meter in the actual building
  • To convert from real life to a scale diagram, divide the real life measurement by the scale factor
  • Example: doorway is 0.8 meters wide in real life, in the scale drawing it should be 0.8 centimeters

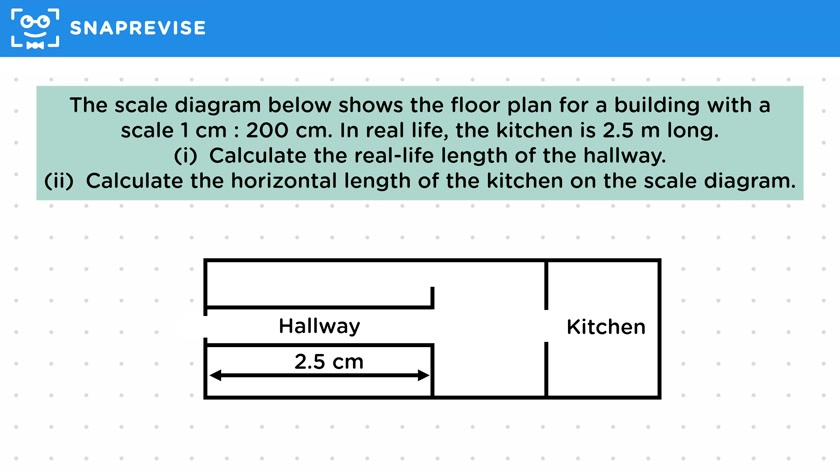

  • Scale diagram has a scale of 1 centimeter to 200 centimeters
  • Kitchen is 2.5 meters long in real life
  • Part 1: Calculate the real life length of the hallway
  • Part 2: Calculate the horizontal length of the kitchen on the scale diagram
  • Step 1: Multiply the length on the scale diagram by the scale factor to get the real life length
  • Step 2: Convert the length of the kitchen to the same units as the scale
  • Step 3: Divide the real life length of the kitchen by the scale factor to get the length in the scale drawing
